core_visualization_overpaint_viewer.py
本例从https://github.com/tpaviot/pythonocc-demos搬运而来
运行版本：0.18.2
在其余版本运行不保证正确

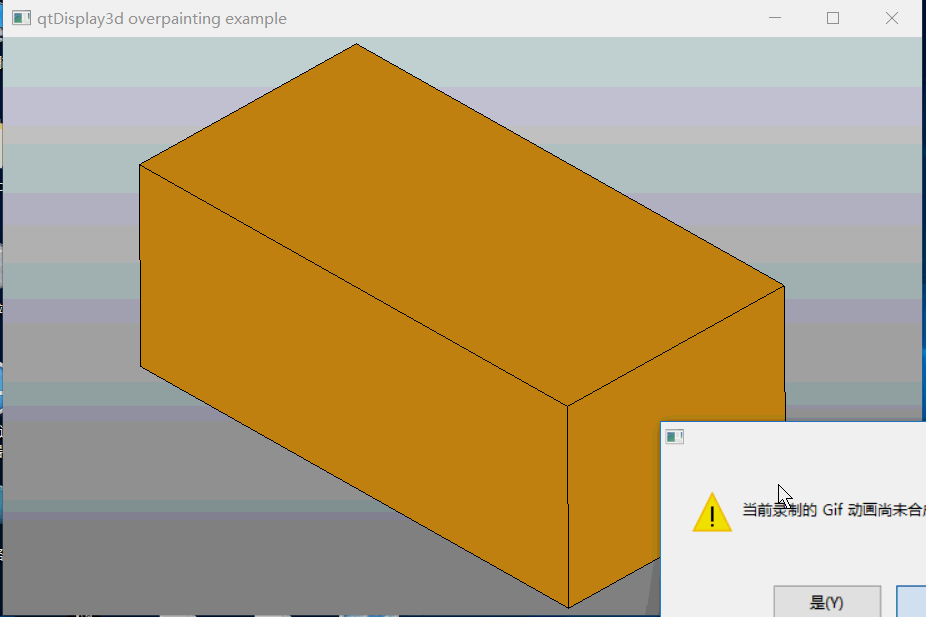

先上结果图
代码部分
from __future__ import print_function
import random
import sys
from OCC.Display.backend import load_any_qt_backend, get_qt_modules
load_any_qt_backend()
QtCore, QtGui, QtWidgets, QtOpenGL = get_qt_modules()
from OCC.Display.qtDisplay import qtViewer3d
# --------------------------------------------------------------------------
# these are names of actions that invoke the OpenGL viewport to be redrawn
# such actions need to be invoked through the GLWidget.update method, which
# in turn invoked the GLWidget.paintEvent method
# this way, all command that redraw the viewport are invoked synchronously
# --------------------------------------------------------------------------
ON_ZOOM = "on_zoom"
ON_ZOOM_AREA = "on_zoom_area"
ON_ZOOM_FACTOR = "on_zoom_factor"
ON_ZOOM_FITALL = "on_zoom_fitall"
ON_DYN_ZOOM = "on_dyn_zoom"
ON_DYN_ROT = "on_dyn_rot"
ON_DYN_PAN = "on_dyn_pan"
ON_MOVE_TO = "on_move_to"
ON_SHIFT_SELECT = "on_shift_select"
ON_SELECT = "on_select"
ON_SELECT_AREA = "on_select_area"
class Bubble(object):
def __init__(self, position, radius, velocity):
self.position = position
self.vel = velocity
self.radius = radius
self.innerColor = self.randomColor()
self.outerColor = self.randomColor()
self.updateBrush()
def updateBrush(self):
gradient = QtGui.QRadialGradient(
QtCore.QPointF(self.radius, self.radius),
self.radius,
QtCore.QPointF(self.radius * 0.5, self.radius * 0.5))
gradient.setColorAt(0, QtGui.QColor(255, 255, 255, 0))
gradient.setColorAt(0.25, self.innerColor)
gradient.setColorAt(1, self.outerColor)
self.brush = QtGui.QBrush(gradient)
def drawBubble(self, painter, mouse_intersects):
painter.save()
painter.translate(self.position.x() - self.radius,
self.position.y() - self.radius)
painter.setBrush(self.brush)
if mouse_intersects:
font = painter.font()
font.setPointSize(20)
painter.setFont(font)
painter.setPen(QtCore.Qt.red)
painter.drawText(0, 0, "so hovering over!!!")
painter.drawEllipse(0, 0, int(2 * self.radius), int(2 * self.radius))
painter.restore()
def randomColor(self):
red = random.randrange(205, 256)
green = random.randrange(205, 256)
blue = random.randrange(205, 256)
alpha = random.randrange(91, 192)
return QtGui.QColor(red, green, blue, alpha)
def move(self, bbox):
self.position += self.vel
leftOverflow = self.position.x() - self.radius - bbox.left()
rightOverflow = self.position.x() + self.radius - bbox.right()
topOverflow = self.position.y() - self.radius - bbox.top()
bottomOverflow = self.position.y() + self.radius - bbox.bottom()
if leftOverflow < 0.0:
self.position.setX(self.position.x() - 2 * leftOverflow)
self.vel.setX(-self.vel.x())
elif rightOverflow > 0.0:
self.position.setX(self.position.x() - 2 * rightOverflow)
self.vel.setX(-self.vel.x())
if topOverflow < 0.0:
self.position.setY(self.position.y() - 2 * topOverflow)
self.vel.setY(-self.vel.y())
elif bottomOverflow > 0.0:
self.position.setY(self.position.y() - 2 * bottomOverflow)
self.vel.setY(-self.vel.y())
def rect(self):
return QtCore.QRectF(self.position.x() - self.radius,
self.position.y() - self.radius, 2 * self.radius,
2 * self.radius)
class GLWidget(qtViewer3d):
def __init__(self, parent=None):
super(GLWidget, self).__init__(parent)
#: state
self._initialized = False
# no effect?
self.doubleBuffer()
# ---------------------------------------------------------------------
# parameters for bubbles
# ---------------------------------------------------------------------
midnight = QtCore.QTime(0, 0, 0)
random.seed(midnight.secsTo(QtCore.QTime.currentTime()))
self.bubbles = []
# parameter for overpainted text box
self.text = """
Example overpainting the OpenGL viewport, inspired by a similar example from Qt
"""
# ---------------------------------------------------------------------
# create properties for the last coordinate, such that the stupid
# "point" conversion takes place implicitly
# ---------------------------------------------------------------------
self.lastPos = QtCore.QPoint()
# ---------------------------------------------------------------------
# GUI parameters
# ---------------------------------------------------------------------
self.setMinimumSize(200, 200)
self.setWindowTitle("Overpainting a Scene")
# parameters for overpainting
self.setAttribute(QtCore.Qt.WA_NoSystemBackground)
self.setAutoFillBackground(False)
# ---------------------------------------------------------------------
# setup
# ---------------------------------------------------------------------
# start the background thread that performs the overpainting of
# the OpenGL view with bubbles
self._setupAnimation()
# ---------------------------------------------------------------------
# GUI State
# ---------------------------------------------------------------------
# QPoint stored on mouse press
self._point_on_mouse_press = QtCore.QPoint()
# QPoint stored on mouse move
self._point_on_mouse_move = QtCore.QPoint()
# stores the delta between self._point_on_mouse_press and self._point_on_mouse_move
self._delta_event_pos = None
self._current_action = self.current_action = None
# mouse button state
self._is_right_mouse_button_surpressed = False
self._is_left_mouse_button_surpressed = False
@property
def point_on_mouse_press(self):
x = self._point_on_mouse_press.x()
y = self._point_on_mouse_press.y()
return x, y
@point_on_mouse_press.setter
def point_on_mouse_press(self, event):
if isinstance(event, QtGui.QMouseEvent):
self._point_on_mouse_press = QtCore.QPoint(event.pos())
elif isinstance(event, QtCore.QPoint):
self._point_on_mouse_press = QtCore.QPoint(event)
@property
def point_on_mouse_move(self):
x = self._point_on_mouse_move.x()
y = self._point_on_mouse_move.y()
return x, y
@point_on_mouse_move.setter
def point_on_mouse_move(self, event):
if isinstance(event, (QtGui.QMouseEvent, QtGui.QWheelEvent)):
self._point_on_mouse_move = QtCore.QPoint(event.pos())
elif isinstance(event, QtCore.QPoint):
self._point_on_mouse_move = QtCore.QPoint(event)
@property
def delta_mouse_event_pos(self):
"""delta between previous_event and next_event"""
pos_a = self._point_on_mouse_press
pos_b = self._point_on_mouse_move
dX = pos_a.x() - pos_b.x()
dY = pos_a.y() - pos_b.y()
return dX, dY
@property
def is_right_mouse_button_surpressed(self):
return self._is_right_mouse_button_surpressed
@is_right_mouse_button_surpressed.setter
def is_right_mouse_button_surpressed(self, value):
self._is_right_mouse_button_surpressed = value
@property
def is_left_mouse_button_surpressed(self):
return self._is_left_mouse_button_surpressed
@is_left_mouse_button_surpressed.setter
def is_left_mouse_button_surpressed(self, value):
self._is_left_mouse_button_surpressed = value
def _setupAnimation(self):
self.animationTimer = QtCore.QTimer()
self.animationTimer.setSingleShot(False)
self.animationTimer.timeout.connect(self.animate)
self.animationTimer.start(25)
def mousePressEvent(self, event):
self.point_on_mouse_press = event
self.setFocus()
button = event.button()
modifiers = event.modifiers()
if button == QtCore.Qt.RightButton:
self.is_right_mouse_button_surpressed = True
elif button == QtCore.Qt.LeftButton:
self.is_left_mouse_button_surpressed = True
if button == QtCore.Qt.RightButton and modifiers == QtCore.Qt.ShiftModifier:
# ON_ZOOM_AREA
self._drawbox = True
elif button == QtCore.Qt.LeftButton and modifiers == QtCore.Qt.ShiftModifier:
# ON_SELECT_AREA
self._drawbox = True
self._select_area = True
self.is_right_mouse_button_surpressed = True
def mouseReleaseEvent(self, event):
button = event.button()
modifiers = event.modifiers()
if button == QtCore.Qt.RightButton:
self.is_right_mouse_button_surpressed = False
if modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_ZOOM_AREA
if button == QtCore.Qt.LeftButton:
self.is_left_mouse_button_surpressed = False
if self._select_area:
self.current_action = ON_SELECT_AREA
elif modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_SHIFT_SELECT
else:
self.current_action = ON_SELECT
self._drawbox = False
self._select_area = False
self.point_on_mouse_move = event
self.update()
def mouseMoveEvent(self, event):
self.point_on_mouse_move = event
buttons = int(event.buttons())
modifiers = event.modifiers()
# rotate
if buttons == QtCore.Qt.LeftButton and not modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_DYN_ROT
# dynamic zoom
elif buttons == QtCore.Qt.RightButton and not modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_DYN_ZOOM
# dynamic panning
elif buttons == QtCore.Qt.MidButton:
self.current_action = ON_DYN_PAN
# zoom window, overpaints rectangle
elif buttons == QtCore.Qt.RightButton and modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_ZOOM_AREA
# select area
elif buttons == QtCore.Qt.LeftButton and modifiers == QtCore.Qt.ShiftModifier:
self.current_action = ON_SELECT_AREA
self.update()
def wheelEvent(self, event):
if self._have_pyqt5:
delta = event.angleDelta().y()
else:
delta = event.delta()
if delta > 0:
self.zoom_factor = 1.3
else:
self.zoom_factor = 0.7
self.current_action = ON_ZOOM_FACTOR
self.point_on_mouse_move = event
self.update()
def keyPressEvent(self, event):
if event.key() == ord("F"):
# fit all command, invokes repaint
self.current_action = ON_ZOOM_FITALL
self.update()
else:
super(GLWidget, self).keyPressEvent(event)
def on_zoom_area(self):
dx, dy = self.delta_mouse_event_pos
tolerance = 2
if abs(dx) <= tolerance and abs(dy) <= tolerance:
# zooming at a near nil value can segfault the opengl viewer
pass
else:
if not self.is_right_mouse_button_surpressed:
coords = [self.point_on_mouse_press[0],
self.point_on_mouse_press[1],
self.point_on_mouse_move[0],
self.point_on_mouse_move[1]]
self._display.ZoomArea(*coords)
def on_zoom_factor(self):
self._display.ZoomFactor(self.zoom_factor)
def on_zoom_fitall(self):
""" handle fitting the scene in the viewport
invoked on pressing "f"
"""
self._display.FitAll()
def on_zoom(self):
self._zoom_area = True
def on_dyn_zoom(self):
""" handle zooming of the viewport
through the shift + right mouse button
"""
self._display.DynamicZoom(self.point_on_mouse_press[0],
self.point_on_mouse_press[1],
self.point_on_mouse_move[0],
self.point_on_mouse_move[1]
)
self.point_on_mouse_press = self._point_on_mouse_move
def on_dyn_rot(self):
""" handle rotation of the viewport
"""
self._display.StartRotation(*self.point_on_mouse_press)
self._display.Rotation(*self.point_on_mouse_move)
self.point_on_mouse_press = self._point_on_mouse_move
def on_dyn_pan(self):
""" handle panning of the viewport
"""
dx, dy = self.delta_mouse_event_pos
self.point_on_mouse_press = self._point_on_mouse_move
self._display.Pan(-dx, dy)
def on_move_to(self):
# Relays mouse position in pixels theXPix and theYPix to the
# interactive context selectors
# This is done by the view theView passing this position to the main
# viewer and updating it
# Functions in both Neutral Point and local contexts
# TODO: 6.9.1 changes this, important...
# If theToRedrawOnUpdate is set to false, callee should call
# RedrawImmediate() to highlight detected object.
print(" no specific action -> MoveTo")
self._display.MoveTo(*self.point_on_mouse_move)
def on_select(self):
self._display.Select(*self.point_on_mouse_move)
def on_shift_select(self):
self._display.ShiftSelect(*self.point_on_mouse_move)
def on_select_area(self):
pass
# TODO: not really implemented
# self._display.SelectArea(Xmin, Ymin, Xmin+dx, Ymin+dy)
def _dispatch_camera_command_actions(self):
""" dispatches actions that involve zooming, panning or rotating
the viewport. Any of these actions invokes redrawing the view.
This is why its relevant that these are handled in a specific method
This method is to be called **exclusisely** from the .paintEvent method
since here it can be interwoven with the overpainting routines
Returns
-------
perform_action : bool
True if any actions were performed, and implicitly the viewport
was redrawn
False otherwise
"""
perform_action = False
if self.current_action:
print("handling camera action:", self.current_action)
try:
if self.current_action is not None:
action = getattr(self, self.current_action)
action()
except Exception:
print("could not invoke camera command action {0}".format(
self.current_action))
finally:
self.current_action = None
return perform_action
def paintEvent(self, event):
""" handles all actions that redraw the viewport
Parameters
----------
event : QPaintEvent
See Also
--------
this method is also invoked through the self.update method, see the
mouseMoveEvent method
"""
if self._inited:
# actions like panning, zooming and rotating the view invoke
# redrawing it
# therefore, these actions need to be performed in the paintEvent
# method
# this way, redrawing the view takes place synchronous with the
# overpaint action
# not respecting this order would lead to a jittering view
if not self._dispatch_camera_command_actions():
# if no camera actions took place, invoke a redraw of
# the viewport
self._display.View.Redraw()
if self.context().isValid():
# acquire the OpenGL context
self.makeCurrent()
painter = QtGui.QPainter(self)
painter.setRenderHint(QtGui.QPainter.Antialiasing, True)
# swap the buffer before overpainting it
self.swapBuffers()
# perform overpainting
self._overpaint(event, painter)
painter.end()
# hand over the OpenGL context
self.doneCurrent()
else:
print('invalid OpenGL context: Qt cannot overpaint viewer')
def _overpaint(self, event, painter):
""" overpaint the viewport
the viewport is overpainted to render a rectangle selection
or -more awesomely- to overpaint bubbles on top of the viewport
in a background rendering thread
Parameters
----------
event:
painter:
"""
self.drawBubbles(event, painter)
# draw instructions in half transparent rectangle on top of
# the viewport
self.drawInstructions(painter)
if self._drawbox:
# draw selection rectangle
self.drawBox(painter)
def showEvent(self, event):
""" invoked when on first draw of the viewport
"""
self.createBubbles(20 - len(self.bubbles))
def createBubbles(self, number):
""" instantiate a `number` of bubbles to be painted on top of
the viewport
"""
for _ in range(number):
position = QtCore.QPointF(
self.width() * (0.1 + 0.8 * random.random()),
self.height() * (0.1 + 0.8 * random.random()))
radius = min(self.width(), self.height()) * (
0.0125 + 0.0875 * random.random())
velocity = QtCore.QPointF(
self.width() * 0.0125 * (-0.5 + random.random()),
self.height() * 0.0125 * (-0.5 + random.random()))
self.bubbles.append(Bubble(position, radius, velocity))
def animate(self):
""" update the position of the bubbles
this method is invoked from the self.animationTimer method
"""
for bubble in self.bubbles:
bubble.move(self.rect())
self.update()
def drawBox(self, painter):
""" overpaint a rectangle on top of the viewport, when selecting with
Shift + right mouse button
"""
painter.setPen(QtGui.QPen(QtGui.QColor(0, 0, 0), 1))
tolerance = 2
dx, dy = self.delta_mouse_event_pos
if abs(dx) <= tolerance and abs(dy) <= tolerance:
pass
else:
rect = QtCore.QRect(self.point_on_mouse_press[0],
self.point_on_mouse_press[1], -dx, -dy)
painter.drawRect(rect)
def drawBubbles(self, event, painter):
""" overpaint soap like bubble on top of the viewport
"""
for bubble in self.bubbles:
bubble_rect = bubble.rect()
if bubble_rect.intersects(QtCore.QRectF(event.rect())):
pt = QtCore.QPointF(self._point_on_mouse_move)
over_mouse = bubble_rect.contains(pt)
bubble.drawBubble(painter, over_mouse)
def drawInstructions(self, painter):
""" overpaint a message with a gray transparent background
"""
transparency = 80
metrics = QtGui.QFontMetrics(self.font())
border = max(4, metrics.leading())
rect = metrics.boundingRect(0, 0, self.width() - 2 * border,
int(self.height() * 0.125),
QtCore.Qt.AlignCenter | QtCore.Qt.TextWordWrap,
self.text)
painter.setRenderHint(QtGui.QPainter.TextAntialiasing)
painter.fillRect(
QtCore.QRect(0, 0, self.width(), rect.height() + 2 * border),
QtGui.QColor(0, 0, 0, transparency))
painter.setPen(QtCore.Qt.white)
painter.fillRect(
QtCore.QRect(0, 0, self.width(), rect.height() + 2 * border),
QtGui.QColor(0, 0, 0, transparency))
painter.drawText((self.width() - rect.width()) / 2, border,
rect.width(),
rect.height(),
QtCore.Qt.AlignCenter | QtCore.Qt.TextWordWrap,
self.text)
if __name__ == '__main__':
def TestOverPainting():
class AppFrame(QtWidgets.QWidget):
def __init__(self, parent=None):
QtWidgets.QWidget.__init__(self, parent)
self.setWindowTitle(self.tr("qtDisplay3d overpainting example"))
self.resize(1280, 1024)
self.canva = GLWidget(self)
mainLayout = QtWidgets.QHBoxLayout()
mainLayout.addWidget(self.canva)
mainLayout.setContentsMargins(0, 0, 0, 0)
self.setLayout(mainLayout)
def runTests(self):
self.canva._display.Test()
app = QtWidgets.QApplication(sys.argv)
frame = AppFrame()
frame.show()
frame.canva.InitDriver()
frame.runTests()
app.exec_()
TestOverPainting()
© 版权声明
文章版权归作者所有，未经允许请勿转载。
THE END
暂无评论内容
