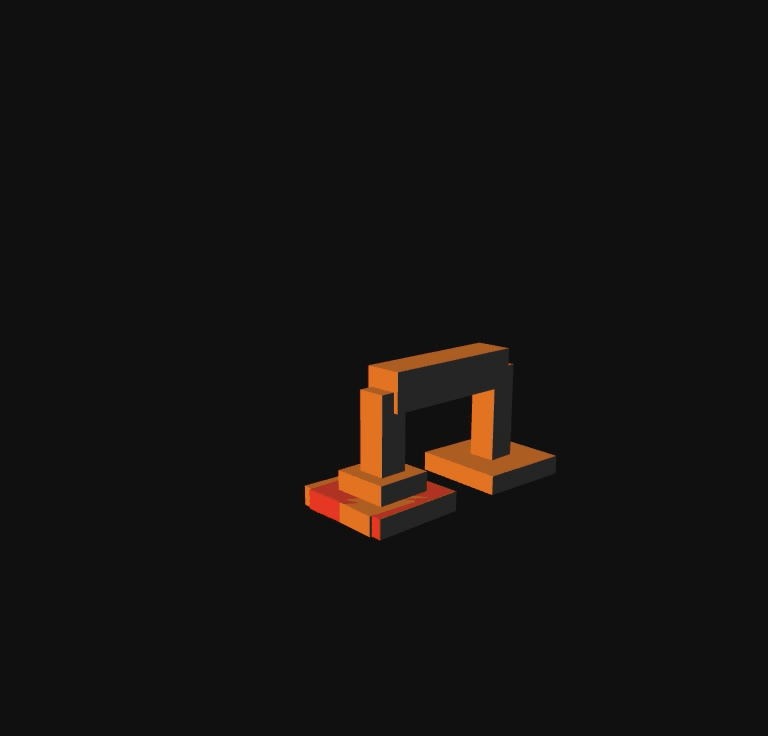

1.demo效果

在这里插入图片描述

如上图，这次的demo效果与上一节一样，不过使用了不同的实现方式，上一个demo使用同一组顶点数据、同一个缓冲区对象通过矩阵变换绘制出不同的组件，这一次为每一个组件初始化了顶点数据和缓冲区对象

2.实现要点

2.1声明各个组件顶点并创建缓冲区对象

首先定义了各个组件的顶点信息，为它们创建各自的缓冲区对象，但是法向量和索引值是可以共享的，所以创建了共用的缓冲区对象

var g_baseBuffer = null //存放基座的缓冲区
var g_cubeBuffer = null //存放初始方块的缓冲区
var g_arm1Buffer = null //存放手臂1的缓冲区
var g_arm2Buffer = null //存放手臂2的缓冲区
var g_arm3Buffer = null //存放手臂3的缓冲区
var g_palmBuffer = null //存放手掌的缓冲区
var g_movingCubeBuffer = null //存放移动的方块的缓冲区
//初始化顶点坐标和顶点颜色
function initVertexBuffers(gl) {

  var vertices_base = new Float32Array([ //基座顶点(10x2x10)
    5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
    5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
    5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
    -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
    -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
    5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
  ])

  var vertices_cube = new Float32Array([ //方块顶点(10x2x10)
    5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
    5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
    5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
    -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
    -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
    5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
  ])

  var vertices_arm1 = new Float32Array([ //手臂1顶点(3x10x3)
    1.5, 10.0, 1.5, -1.5, 10.0, 1.5, -1.5, 0.0, 1.5, 1.5, 0.0, 1.5, //v0-v1-v2-v3 前
    1.5, 10.0, 1.5, 1.5, 0.0, 1.5, 1.5, 0.0, -1.5, 1.5, 10.0, -1.5, //v0-v3-v4-v5 右
    1.5, 10.0, 1.5, 1.5, 10.0, -1.5, -1.5, 10.0, -1.5, -1.5, 10.0, 1.5, //v0-v5-v6-v1 上
    -1.5, 10.0, 1.5, -1.5, 10.0, -1.5, -1.5, 0.0, -1.5, -1.5, 0.0, 1.5, //v1-v6-v7-v2 左
    -1.5, 0.0, -1.5, 1.5, 0.0, -1.5, 1.5, 0.0, 1.5, -1.5, 0.0, 1.5, //v7-v4-v3-v2 下
    1.5, 0.0, -1.5, -1.5, 0.0, -1.5, -1.5, 10.0, -1.5, 1.5, 10.0, -1.5 //v4-v7-v6-v5 后
  ])

  var vertices_arm2 = new Float32Array([ //手臂2顶点(4x16x4)
    2.0, 16.0, 2.0, -2.0, 16.0, 2.0, -2.0, 0.0, 2.0, 2.0, 0.0, 2.0, //v0-v1-v2-v3 前
    2.0, 16.0, 2.0, 2.0, 0.0, 2.0, 2.0, 0.0, -2.0, 2.0, 16.0, -2.0, //v0-v3-v4-v5 右
    2.0, 16.0, 2.0, 2.0, 16.0, -2.0, -2.0, 16.0, -2.0, -2.0, 16.0, 2.0, //v0-v5-v6-v1 上
    -2.0, 16.0, 2.0, -2.0, 16.0, -2.0, -2.0, 0.0, -2.0, -2.0, 0.0, 2.0, //v1-v6-v7-v2 左
    -2.0, 0.0, -2.0, 2.0, 0.0, -2.0, 2.0, 0.0, 2.0, -2.0, 0.0, 2.0, //v7-v4-v3-v2 下
    2.0, 0.0, -2.0, -2.0, 0.0, -2.0, -2.0, 16.0, -2.0, 2.0, 16.0, -2.0 //v4-v7-v6-v5 后
  ])

  var vertices_arm3 = new Float32Array([ //手臂3顶点(3x10x3)
    1.5, 10.0, 1.5, -1.5, 10.0, 1.5, -1.5, 0.0, 1.5, 1.5, 0.0, 1.5, //v0-v1-v2-v3 前
    1.5, 10.0, 1.5, 1.5, 0.0, 1.5, 1.5, 0.0, -1.5, 1.5, 10.0, -1.5, //v0-v3-v4-v5 右
    1.5, 10.0, 1.5, 1.5, 10.0, -1.5, -1.5, 10.0, -1.5, -1.5, 10.0, 1.5, //v0-v5-v6-v1 上
    -1.5, 10.0, 1.5, -1.5, 10.0, -1.5, -1.5, 0.0, -1.5, -1.5, 0.0, 1.5, //v1-v6-v7-v2 左
    -1.5, 0.0, -1.5, 1.5, 0.0, -1.5, 1.5, 0.0, 1.5, -1.5, 0.0, 1.5, //v7-v4-v3-v2 下
    1.5, 0.0, -1.5, -1.5, 0.0, -1.5, -1.5, 10.0, -1.5, 1.5, 10.0, -1.5 //v4-v7-v6-v5 后
  ])


  var vertices_palm = new Float32Array([ //手掌顶点(6x2x6)
    3.0, 2.0, 3.0, -3.0, 2.0, 3.0, -3.0, 0.0, 3.0, 3.0, 0.0, 3.0, //v0-v1-v2-v3 前
    3.0, 2.0, 3.0, 3.0, 0.0, 3.0, 3.0, 0.0, -3.0, 3.0, 2.0, -3.0, //v0-v3-v4-v5 右
    3.0, 2.0, 3.0, 3.0, 2.0, -3.0, -3.0, 2.0, -3.0, -3.0, 2.0, 3.0, //v0-v5-v6-v1 上
    -3.0, 2.0, 3.0, -3.0, 2.0, -3.0, -3.0, 0.0, -3.0, -3.0, 0.0, 3.0, //v1-v6-v7-v2 左
    -3.0, 0.0, -3.0, 3.0, 0.0, -3.0, 3.0, 0.0, 3.0, -3.0, 0.0, 3.0, //v7-v4-v3-v2 下
    3.0, 0.0, -3.0, -3.0, 0.0, -3.0, -3.0, 2.0, -3.0, 3.0, 2.0, -3.0 //v4-v7-v6-v5 后
  ])

  var vertices_moving_cube = new Float32Array([ //移动方块顶点(10x2x10)
    5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
    5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
    5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
    -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
    -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
    5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
  ])

  var font = [0.0, 0.0, 1.0]
  var back = [0.0, 0.0, -1.0]
  var left = [-1.0, 0.0, 0.0]
  var right = [1.0, 0.0, 0.0]
  var top = [0.0, 1.0, 0.0]
  var down = [0.0, -1.0, 0.0]
  //法向量
  var normals = new Float32Array([
    ...font, ...font, ...font, ...font, //v0-v1-v2-v3 前
    ...right, ...right, ...right, ...right, //v0-v3-v4-v5 右
    ...top, ...top, ...top, ...top, //v0-v5-v6-v1 上
    ...left, ...left, ...left, ...left, //v1-v6-v7-v2 左
    ...down, ...down, ...down, ...down, //v7-v4-v3-v2 下
    ...back, ...back, ...back, ...back, //v4-v7-v6-v5 后
  ])

  //绘制的索引
  var indices = new Uint8Array([
    0, 1, 2, 0, 2, 3, //前
    4, 5, 6, 4, 6, 7, //右
    8, 9, 10, 8, 10, 11, //上
    12, 13, 14, 12, 14, 15, //左
    16, 17, 18, 16, 18, 19, //下
    20, 21, 22, 20, 22, 23 //后
  ])

  g_baseBuffer = initArrayBufferForLaterUse(gl, vertices_base, 3, gl.FLOAT)
  g_cubeBuffer = initArrayBufferForLaterUse(gl, vertices_cube, 3, gl.FLOAT)
  g_arm1Buffer = initArrayBufferForLaterUse(gl, vertices_arm1, 3, gl.FLOAT)
  g_arm2Buffer = initArrayBufferForLaterUse(gl, vertices_arm2, 3, gl.FLOAT)
  g_arm3Buffer = initArrayBufferForLaterUse(gl, vertices_arm3, 3, gl.FLOAT)
  g_palmBuffer = initArrayBufferForLaterUse(gl, vertices_palm, 3, gl.FLOAT)
  g_movingCubeBuffer = initArrayBufferForLaterUse(gl, vertices_moving_cube, 3, gl.FLOAT)
  if (!g_baseBuffer || !g_cubeBuffer || !g_arm1Buffer || !g_arm2Buffer || !g_arm3Buffer || !g_palmBuffer || !
    g_movingCubeBuffer) {
    return -1
  }

  //创建缓冲区对象并写入顶点法向量
  if (!initArrayBuffer(gl, normals, 3, gl.FLOAT, 'a_Normal')) {
    return -1
  }

  //创建缓冲区对象
  var indexBuffer = gl.createBuffer()

  //将顶点索引写入缓冲区对象
  gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, indexBuffer)
  gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, indices, gl.STATIC_DRAW)

  return indices.length

}

2.2绘制各个组件

上一个demo使用drawBox()函数绘制方块，传入了长、宽、高来缩放立方体，这一次使用drawSegment()函数，传入了存放不同组件顶点信息的缓冲区对象，在drawSegment()函数中，将传入的缓冲区对象分配给顶点着色器中的a_Position变量，然后绘图

//绘制图形
function draw(gl, n, a_Position, viewProjMatrix, u_MvpMatrix, u_NormalMatrix, u_VerticesColor) {

  gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT)
  gl.uniform3f(u_VerticesColor, 1.0, 0.4, 0.0)

  //绘制基座
  var baseHeight = 2.0 //基座的高度
  g_modelMatrix.setTranslate(0.0, -12.0, 0.0) //设置为平移矩阵，并沿y轴向下移动12
  drawSegment(gl, n, g_baseBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

  //方块
  var cubeHeight = 2.0 //方块厚度
  g_modelMatrix.setTranslate(0.0, -12.0, -16)
  drawSegment(gl, n, g_cubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)


  //第一节胳膊
  var arm1Length = 10.0 //第一节胳膊的长度
  g_modelMatrix.translate(0.0, baseHeight, 0.0)
  g_modelMatrix.rotate(g_body_angle, 0.0, 1.0, 0.0)
  drawSegment(gl, n, g_arm1Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

  //第二节胳膊
  var arm2Length = 16.0
  g_modelMatrix.translate(0.0, arm1Length, 0.0) //移至arm1
  g_modelMatrix.rotate(g_arm_angle, 0.0, 0.0, 1.0)
  drawSegment(gl, n, g_arm2Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

  //第三节胳膊
  var arm3Length = 10.0
  g_modelMatrix.translate(0.0, arm2Length, 0.0) //移至arm2
  g_modelMatrix.rotate(g_arm_angle, 0.0, 0.0, 1.0)
  drawSegment(gl, n, g_arm3Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

  //手掌
  var palmLength = 2.0
  var handleLength = 8.0
  g_modelMatrix.translate(0.0, handleLength, 0.0) //移至arm3
  g_modelMatrix.rotate(0.0, 0.0, 1.0, 0.0)
  drawSegment(gl, n, g_palmBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)



  //随手臂移动的方块
  if (g_isHandleCube) {
    gl.uniform3f(u_VerticesColor, 1.0, 0.0, 0.0)
    var cubeHeight = 2.0 //方块厚度
    g_modelMatrix.translate(0.0, cubeHeight, 0.0)
    drawSegment(gl, n, g_movingCubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)
  } else if (!g_isHandleCube && g_moveEnd) {
    g_modelMatrix.setTranslate(0.0, -12.0, -32)
    gl.uniform3f(u_VerticesColor, 1.0, 0.4, 0.0)
    drawSegment(gl, n, g_movingCubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)
  }

}

var g_normalMatrix = new Matrix4() //变换法向量矩阵

//绘制立方体

function drawSegment(gl, n, buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix) {
  //将缓冲区对象绑定到目标
  gl.bindBuffer(gl.ARRAY_BUFFER, buffer)
  //给顶点着色器变量a_Position分配缓存并开启
  gl.vertexAttribPointer(a_Position, buffer.num, buffer.type, false, 0, 0)
  gl.enableVertexAttribArray(a_Position)

  //计算、设置模型视图投影矩阵
  g_mvpMatrix.set(viewProjMatrix)
  g_mvpMatrix.multiply(g_modelMatrix)
  gl.uniformMatrix4fv(u_MvpMatrix, false, g_mvpMatrix.elements)

  //计算、设置变换法向量矩阵
  g_normalMatrix.setInverseOf(g_modelMatrix)
  g_normalMatrix.transpose()
  gl.uniformMatrix4fv(u_NormalMatrix, false, g_normalMatrix.elements)
  //绘制
  gl.drawElements(gl.TRIANGLES, n, gl.UNSIGNED_BYTE, 0)
}

3.demo代码

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <title></title>
</head>

<body>
  <!--通过canvas标签创建一个800px*800px大小的画布-->
  <canvas id="webgl" width="800" height="800"></canvas>
  <script type="text/javascript" src="./lib/cuon-matrix.js"></script>
  <script>
    //顶点着色器
    var VSHADER_SOURCE = '' +
      'attribute vec4 a_Position;\\n' + //声明attribute变量a_Position，用来存放顶点位置信息
      'attribute vec4 a_Normal;\\n' + //声明attribute变量a_Normal，用来存放法向量
      'uniform mat4 u_MvpMatrix;\\n' + //声明uniform变量u_MvpMatrix，用来存放模型视图投影组合矩阵
      'uniform mat4 u_NormalMatrix;\\n' + //声明uniform变量u_NormalMatrix，用来存放变换法向量矩阵
      'uniform vec3 u_VerticesColor;\\n' + //声明uniform变量u_VerticesColor，用来存放顶点颜色
      'varying vec4 v_Color;\\n' + //声明varying变量v_Color，用来向片元着色器传值顶点颜色信息
      'void main(){\\n' +
      '  gl_Position = u_MvpMatrix * a_Position;\\n' + //将模型视图投影组合矩阵与顶点坐标相乘赋值给顶点着色器内置变量gl_Position
      '  vec3 normal = normalize(vec3(u_NormalMatrix * a_Normal));\\n' + //对计算变换后的法向量并归一化处理
      '  vec3 lightDirection = normalize(vec3(0.0,0.5,0.7));\\n' + //声明光线方向
      '  float nDotL = max(dot(lightDirection, normal), 0.0);\\n' + //计算光线方向和法向量点积
      '  vec3 diffuse = u_VerticesColor * nDotL;\\n' + //计算平行光的颜色
      '  vec3 ambient = vec3(0.1);\\n' + //声明环境光颜色
      '  v_Color = vec4(diffuse + ambient, 1.0);\\n' + //将颜色信息传给片元着色器，
      '}\\n'

    //片元着色器
    var FSHADER_SOURCE = '' +
      '#ifdef GL_ES\\n' +
      ' precision mediump float;\\n' + // 设置精度
      '#endif\\n' +
      'varying vec4 v_Color;\\n' + //声明varying变量v_Color，用来接收顶点着色器传送的片元颜色信息
      'void main(){\\n' +
      //将varying变量v_Color接收的颜色信息赋值给内置变量gl_FragColor
      ' gl_FragColor = v_Color;\\n' +
      '}\\n'

    //初始化着色器函数
    function initShader(gl, VSHADER_SOURCE, FSHADER_SOURCE) {
      //创建顶点着色器对象
      var vertexShader = gl.createShader(gl.VERTEX_SHADER)
      //创建片元着色器对象
      var fragmentShader = gl.createShader(gl.FRAGMENT_SHADER)
      //引入顶点、片元着色器源代码
      gl.shaderSource(vertexShader, VSHADER_SOURCE)
      gl.shaderSource(fragmentShader, FSHADER_SOURCE)
      //编译顶点、片元着色器
      gl.compileShader(vertexShader)
      gl.compileShader(fragmentShader)

      //创建程序对象program
      var program = gl.createProgram()
      //附着顶点着色器和片元着色器到program
      gl.attachShader(program, vertexShader)
      gl.attachShader(program, fragmentShader)
      //链接program
      gl.linkProgram(program)
      //使用program
      gl.useProgram(program)
      gl.program = program
      //返回程序program对象
      return program
    }

    function init() {
      //通过getElementById()方法获取canvas画布
      var canvas = document.getElementById('webgl')
      //通过方法getContext()获取WebGL上下文
      var gl = canvas.getContext('webgl')
      //初始化着色器
      if (!initShader(gl, VSHADER_SOURCE, FSHADER_SOURCE)) {
        console.log('初始化着色器失败')
        return
      }

      //设置canvas的背景色
      gl.clearColor(0.0, 0.0, 0.0, 1.0)

      //初始化顶点坐标和顶点颜色
      var n = initVertexBuffers(gl)

      setMatrixAndDraw(gl, n)

    }

    //设置矩阵并绘图
    function setMatrixAndDraw(gl, n) {

      //开启隐藏面消除
      gl.enable(gl.DEPTH_TEST)

      //清空颜色和深度缓冲区
      gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT)

      //获取顶点着色器uniform变量u_MvpMatrix、u_NormalMatrix,u_VerticesColor的存储地址
      var u_MvpMatrix = gl.getUniformLocation(gl.program, 'u_MvpMatrix')
      var u_NormalMatrix = gl.getUniformLocation(gl.program, 'u_NormalMatrix')
      var u_VerticesColor = gl.getUniformLocation(gl.program, 'u_VerticesColor')

      if (!u_MvpMatrix || !u_NormalMatrix || !u_VerticesColor) {
        console.log('获取u_MvpMatrix、u_NormalMatrix或u_VerticesColor存储地址失败')
        return
      }

      //设置视图投影矩阵
      var viewProjMatrix = new Matrix4()
      viewProjMatrix.setPerspective(50.0, 1.0, 1.0, 150.0)
      viewProjMatrix.lookAt(60.0, 20.0, 50.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0)


      //获取顶点着色器attribute变量a_Position的存储地址
      var a_Position = gl.getAttribLocation(gl.program, 'a_Position')

      //声明tick函数
      var tick = function () {
        animate(gl, n, a_Position, viewProjMatrix, u_MvpMatrix, u_NormalMatrix, u_VerticesColor)
        requestAnimationFrame(tick)
      }
      tick() //调用tick

    }



    //声明全局变量
    var arm_step_angle = 1.0 //手臂每一次动画弯曲的角度
    var body_step_angle = 3.0 //手臂整体每一次动画旋转角度
    var g_body_angle = -90.0 //手臂整体的旋转角度
    var g_arm_angle = -45.0 //手臂弯曲的角度
    var g_isHandleCube = false
    var g_moveEnd = false

    var g_times = 0

    function animate(gl, n, a_Position, viewProjMatrix, u_MvpMatrix, u_NormalMatrix, u_VerticesColor) {
      g_times++
      if (g_times > 170) { //结束动画，数据重置
        g_times = 0
        arm_step_angle = 1.0 //手臂每一次动画弯曲的角度
        body_step_angle = 3.0 //手臂整体每一次动画旋转角度
        g_body_angle = -90.0 //手臂整体的旋转角度
        g_arm_angle = -45.0 //手臂弯曲的角度
        g_isHandleCube = false
        g_moveEnd = false
        g_modelMatrix.setTranslate(0.0, -12.0, 0.0) //模型矩阵恢复
      }

      if (g_times < 45) { //第二、第三手臂向下弯
        g_arm_angle -= arm_step_angle
      } else if (g_times <= 100) { //抓起方块整体旋转
        g_isHandleCube = true
        g_body_angle = g_body_angle + body_step_angle
      } else if (g_times <= 105) { //放下方块，抬起一点第二、第三手臂
        g_isHandleCube = false
        g_moveEnd = true
        g_arm_angle += arm_step_angle
      } else if (g_times <= 160) { //手臂整体旋转回来
        g_body_angle = g_body_angle - body_step_angle
        g_arm_angle += arm_step_angle
      } else if (g_times <= 165) { //手臂抬起
        g_arm_angle += arm_step_angle
      }

      draw(gl, n, a_Position, viewProjMatrix, u_MvpMatrix, u_NormalMatrix, u_VerticesColor)
    }


    //声明模型变换矩阵和模型视图投影矩阵
    var g_modelMatrix = new Matrix4()
    var g_mvpMatrix = new Matrix4()

    //绘制图形
    function draw(gl, n, a_Position, viewProjMatrix, u_MvpMatrix, u_NormalMatrix, u_VerticesColor) {

      gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT)
      gl.uniform3f(u_VerticesColor, 1.0, 0.4, 0.0)

      //绘制基座
      var baseHeight = 2.0 //基座的高度
      g_modelMatrix.setTranslate(0.0, -12.0, 0.0) //设置为平移矩阵，并沿y轴向下移动12
      drawSegment(gl, n, g_baseBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

      //方块
      var cubeHeight = 2.0 //方块厚度
      g_modelMatrix.setTranslate(0.0, -12.0, -16)
      drawSegment(gl, n, g_cubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)


      //第一节胳膊
      var arm1Length = 10.0 //第一节胳膊的长度
      g_modelMatrix.translate(0.0, baseHeight, 0.0)
      g_modelMatrix.rotate(g_body_angle, 0.0, 1.0, 0.0)
      drawSegment(gl, n, g_arm1Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

      //第二节胳膊
      var arm2Length = 16.0
      g_modelMatrix.translate(0.0, arm1Length, 0.0) //移至arm1
      g_modelMatrix.rotate(g_arm_angle, 0.0, 0.0, 1.0)
      drawSegment(gl, n, g_arm2Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

      //第三节胳膊
      var arm3Length = 10.0
      g_modelMatrix.translate(0.0, arm2Length, 0.0) //移至arm2
      g_modelMatrix.rotate(g_arm_angle, 0.0, 0.0, 1.0)
      drawSegment(gl, n, g_arm3Buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)

      //手掌
      var palmLength = 2.0
      var handleLength = 8.0
      g_modelMatrix.translate(0.0, handleLength, 0.0) //移至arm3
      g_modelMatrix.rotate(0.0, 0.0, 1.0, 0.0)
      drawSegment(gl, n, g_palmBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)



      //随手臂移动的方块
      if (g_isHandleCube) {
        gl.uniform3f(u_VerticesColor, 1.0, 0.0, 0.0)
        var cubeHeight = 2.0 //方块厚度
        g_modelMatrix.translate(0.0, cubeHeight, 0.0)
        drawSegment(gl, n, g_movingCubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)
      } else if (!g_isHandleCube && g_moveEnd) {
        g_modelMatrix.setTranslate(0.0, -12.0, -32)
        gl.uniform3f(u_VerticesColor, 1.0, 0.4, 0.0)
        drawSegment(gl, n, g_movingCubeBuffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix)
      }

    }

    var g_normalMatrix = new Matrix4() //变换法向量矩阵

    //绘制立方体

    function drawSegment(gl, n, buffer, viewProjMatrix, a_Position, u_MvpMatrix, u_NormalMatrix) {
      //将缓冲区对象绑定到目标
      gl.bindBuffer(gl.ARRAY_BUFFER, buffer)
      //给顶点着色器变量a_Position分配缓存并开启
      gl.vertexAttribPointer(a_Position, buffer.num, buffer.type, false, 0, 0)
      gl.enableVertexAttribArray(a_Position)

      //计算、设置模型视图投影矩阵
      g_mvpMatrix.set(viewProjMatrix)
      g_mvpMatrix.multiply(g_modelMatrix)
      gl.uniformMatrix4fv(u_MvpMatrix, false, g_mvpMatrix.elements)

      //计算、设置变换法向量矩阵
      g_normalMatrix.setInverseOf(g_modelMatrix)
      g_normalMatrix.transpose()
      gl.uniformMatrix4fv(u_NormalMatrix, false, g_normalMatrix.elements)
      //绘制
      gl.drawElements(gl.TRIANGLES, n, gl.UNSIGNED_BYTE, 0)
    }


    var g_baseBuffer = null //存放基座的缓冲区
    var g_cubeBuffer = null //存放初始方块的缓冲区
    var g_arm1Buffer = null //存放手臂1的缓冲区
    var g_arm2Buffer = null //存放手臂2的缓冲区
    var g_arm3Buffer = null //存放手臂3的缓冲区
    var g_palmBuffer = null //存放手掌的缓冲区
    var g_movingCubeBuffer = null //存放移动的方块的缓冲区
    //初始化顶点坐标和顶点颜色
    function initVertexBuffers(gl) {

      var vertices_base = new Float32Array([ //基座顶点(10x2x10)
        5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
        5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
        5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
        -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
        -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
        5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
      ])

      var vertices_cube = new Float32Array([ //方块顶点(10x2x10)
        5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
        5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
        5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
        -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
        -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
        5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
      ])

      var vertices_arm1 = new Float32Array([ //手臂1顶点(3x10x3)
        1.5, 10.0, 1.5, -1.5, 10.0, 1.5, -1.5, 0.0, 1.5, 1.5, 0.0, 1.5, //v0-v1-v2-v3 前
        1.5, 10.0, 1.5, 1.5, 0.0, 1.5, 1.5, 0.0, -1.5, 1.5, 10.0, -1.5, //v0-v3-v4-v5 右
        1.5, 10.0, 1.5, 1.5, 10.0, -1.5, -1.5, 10.0, -1.5, -1.5, 10.0, 1.5, //v0-v5-v6-v1 上
        -1.5, 10.0, 1.5, -1.5, 10.0, -1.5, -1.5, 0.0, -1.5, -1.5, 0.0, 1.5, //v1-v6-v7-v2 左
        -1.5, 0.0, -1.5, 1.5, 0.0, -1.5, 1.5, 0.0, 1.5, -1.5, 0.0, 1.5, //v7-v4-v3-v2 下
        1.5, 0.0, -1.5, -1.5, 0.0, -1.5, -1.5, 10.0, -1.5, 1.5, 10.0, -1.5 //v4-v7-v6-v5 后
      ])

      var vertices_arm2 = new Float32Array([ //手臂2顶点(4x16x4)
        2.0, 16.0, 2.0, -2.0, 16.0, 2.0, -2.0, 0.0, 2.0, 2.0, 0.0, 2.0, //v0-v1-v2-v3 前
        2.0, 16.0, 2.0, 2.0, 0.0, 2.0, 2.0, 0.0, -2.0, 2.0, 16.0, -2.0, //v0-v3-v4-v5 右
        2.0, 16.0, 2.0, 2.0, 16.0, -2.0, -2.0, 16.0, -2.0, -2.0, 16.0, 2.0, //v0-v5-v6-v1 上
        -2.0, 16.0, 2.0, -2.0, 16.0, -2.0, -2.0, 0.0, -2.0, -2.0, 0.0, 2.0, //v1-v6-v7-v2 左
        -2.0, 0.0, -2.0, 2.0, 0.0, -2.0, 2.0, 0.0, 2.0, -2.0, 0.0, 2.0, //v7-v4-v3-v2 下
        2.0, 0.0, -2.0, -2.0, 0.0, -2.0, -2.0, 16.0, -2.0, 2.0, 16.0, -2.0 //v4-v7-v6-v5 后
      ])

      var vertices_arm3 = new Float32Array([ //手臂3顶点(3x10x3)
        1.5, 10.0, 1.5, -1.5, 10.0, 1.5, -1.5, 0.0, 1.5, 1.5, 0.0, 1.5, //v0-v1-v2-v3 前
        1.5, 10.0, 1.5, 1.5, 0.0, 1.5, 1.5, 0.0, -1.5, 1.5, 10.0, -1.5, //v0-v3-v4-v5 右
        1.5, 10.0, 1.5, 1.5, 10.0, -1.5, -1.5, 10.0, -1.5, -1.5, 10.0, 1.5, //v0-v5-v6-v1 上
        -1.5, 10.0, 1.5, -1.5, 10.0, -1.5, -1.5, 0.0, -1.5, -1.5, 0.0, 1.5, //v1-v6-v7-v2 左
        -1.5, 0.0, -1.5, 1.5, 0.0, -1.5, 1.5, 0.0, 1.5, -1.5, 0.0, 1.5, //v7-v4-v3-v2 下
        1.5, 0.0, -1.5, -1.5, 0.0, -1.5, -1.5, 10.0, -1.5, 1.5, 10.0, -1.5 //v4-v7-v6-v5 后
      ])


      var vertices_palm = new Float32Array([ //手掌顶点(6x2x6)
        3.0, 2.0, 3.0, -3.0, 2.0, 3.0, -3.0, 0.0, 3.0, 3.0, 0.0, 3.0, //v0-v1-v2-v3 前
        3.0, 2.0, 3.0, 3.0, 0.0, 3.0, 3.0, 0.0, -3.0, 3.0, 2.0, -3.0, //v0-v3-v4-v5 右
        3.0, 2.0, 3.0, 3.0, 2.0, -3.0, -3.0, 2.0, -3.0, -3.0, 2.0, 3.0, //v0-v5-v6-v1 上
        -3.0, 2.0, 3.0, -3.0, 2.0, -3.0, -3.0, 0.0, -3.0, -3.0, 0.0, 3.0, //v1-v6-v7-v2 左
        -3.0, 0.0, -3.0, 3.0, 0.0, -3.0, 3.0, 0.0, 3.0, -3.0, 0.0, 3.0, //v7-v4-v3-v2 下
        3.0, 0.0, -3.0, -3.0, 0.0, -3.0, -3.0, 2.0, -3.0, 3.0, 2.0, -3.0 //v4-v7-v6-v5 后
      ])

      var vertices_moving_cube = new Float32Array([ //移动方块顶点(10x2x10)
        5.0, 2.0, 5.0, -5.0, 2.0, 5.0, -5.0, 0.0, 5.0, 5.0, 0.0, 5.0, //v0-v1-v2-v3 前
        5.0, 2.0, 5.0, 5.0, 0.0, 5.0, 5.0, 0.0, -5.0, 5.0, 2.0, -5.0, //v0-v3-v4-v5 右
        5.0, 2.0, 5.0, 5.0, 2.0, -5.0, -5.0, 2.0, -5.0, -5.0, 2.0, 5.0, //v0-v5-v6-v1 上
        -5.0, 2.0, 5.0, -5.0, 2.0, -5.0, -5.0, 0.0, -5.0, -5.0, 0.0, 5.0, //v1-v6-v7-v2 左
        -5.0, 0.0, -5.0, 5.0, 0.0, -5.0, 5.0, 0.0, 5.0, -5.0, 0.0, 5.0, //v7-v4-v3-v2 下
        5.0, 0.0, -5.0, -5.0, 0.0, -5.0, -5.0, 2.0, -5.0, 5.0, 2.0, -5.0 //v4-v7-v6-v5 后
      ])

      var font = [0.0, 0.0, 1.0]
      var back = [0.0, 0.0, -1.0]
      var left = [-1.0, 0.0, 0.0]
      var right = [1.0, 0.0, 0.0]
      var top = [0.0, 1.0, 0.0]
      var down = [0.0, -1.0, 0.0]
      //法向量
      var normals = new Float32Array([
        ...font, ...font, ...font, ...font, //v0-v1-v2-v3 前
        ...right, ...right, ...right, ...right, //v0-v3-v4-v5 右
        ...top, ...top, ...top, ...top, //v0-v5-v6-v1 上
        ...left, ...left, ...left, ...left, //v1-v6-v7-v2 左
        ...down, ...down, ...down, ...down, //v7-v4-v3-v2 下
        ...back, ...back, ...back, ...back, //v4-v7-v6-v5 后
      ])

      //绘制的索引
      var indices = new Uint8Array([
        0, 1, 2, 0, 2, 3, //前
        4, 5, 6, 4, 6, 7, //右
        8, 9, 10, 8, 10, 11, //上
        12, 13, 14, 12, 14, 15, //左
        16, 17, 18, 16, 18, 19, //下
        20, 21, 22, 20, 22, 23 //后
      ])

      g_baseBuffer = initArrayBufferForLaterUse(gl, vertices_base, 3, gl.FLOAT)
      g_cubeBuffer = initArrayBufferForLaterUse(gl, vertices_cube, 3, gl.FLOAT)
      g_arm1Buffer = initArrayBufferForLaterUse(gl, vertices_arm1, 3, gl.FLOAT)
      g_arm2Buffer = initArrayBufferForLaterUse(gl, vertices_arm2, 3, gl.FLOAT)
      g_arm3Buffer = initArrayBufferForLaterUse(gl, vertices_arm3, 3, gl.FLOAT)
      g_palmBuffer = initArrayBufferForLaterUse(gl, vertices_palm, 3, gl.FLOAT)
      g_movingCubeBuffer = initArrayBufferForLaterUse(gl, vertices_moving_cube, 3, gl.FLOAT)
      if (!g_baseBuffer || !g_cubeBuffer || !g_arm1Buffer || !g_arm2Buffer || !g_arm3Buffer || !g_palmBuffer || !
        g_movingCubeBuffer) {
        return -1
      }

      //创建缓冲区对象并写入顶点法向量
      if (!initArrayBuffer(gl, normals, 3, gl.FLOAT, 'a_Normal')) {
        return -1
      }

      //创建缓冲区对象
      var indexBuffer = gl.createBuffer()

      //将顶点索引写入缓冲区对象
      gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, indexBuffer)
      gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, indices, gl.STATIC_DRAW)

      return indices.length

    }

    function initArrayBufferForLaterUse(gl, data, num, type) {
      var buffer = gl.createBuffer() //创建缓冲区对象
      if (!buffer) {
        console.log(' 创建缓冲区失败')
        return null
      }
      //向缓冲区对象写入数据
      gl.bindBuffer(gl.ARRAY_BUFFER, buffer)
      gl.bufferData(gl.ARRAY_BUFFER, data, gl.STATIC_DRAW)

      buffer.num = num
      buffer.type = type

      return buffer
    }

    function initArrayBuffer(gl, data, num, type, attribute) {
      //创建缓冲区对象
      var buffer = gl.createBuffer()
      //将数据写入缓冲区对象
      gl.bindBuffer(gl.ARRAY_BUFFER, buffer)
      gl.bufferData(gl.ARRAY_BUFFER, data, gl.STATIC_DRAW)

      //获取顶点着色器attribute变量存储地址, 分配缓存并开启
      var a_Attribute = gl.getAttribLocation(gl.program, attribute)
      gl.vertexAttribPointer(a_Attribute, num, type, false, 0, 0)
      gl.enableVertexAttribArray(a_Attribute)

      return true
    }

    init()
  </script>
</body>

</html>
