# 3. 实现要点

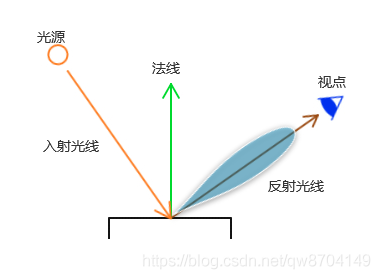

## 3.1 反射光计算

//顶点着色器
attribute vec3 position; //顶点位置信息
attribute vec4 color; //颜色
attribute vec3 normal; //法线
uniform mat4 uMvpMatrix; //模型视图投影矩阵
uniform mat4 uInvMatrix;//模型坐标变换矩阵的逆矩阵
uniform vec3 uLightDirection;//平行光方向
uniform vec3 uDirectLightColor;//平行光颜色
uniform vec4 uAmbientLightColor;//环境光颜色
uniform vec3 uEyeDirection;//视点方向
varying vec4 vColor; //向片元着色器传值颜色信息
void main(){
vec3 invLight = normalize(uInvMatrix*vec4(uLightDirection,0.0)).xyz;
vec3 invEye = normalize(uInvMatrix*vec4(uEyeDirection,0.0)).xyz;
vec3 halfLE = normalize(invLight + invEye);//半程向量
float diffuse = clamp(dot(normal,invLight),0.0,1.0);//将结果限定在0.0~1.0内
float specular = pow(clamp(dot(normal, halfLE), 0.0, 1.0), 50.0);//计算高光
//颜色 = 顶点颜色 * 漫反射光 + 反射光 + 环境光
vColor = color*vec4(vec3(uDirectLightColor),1.0)*vec4(vec3(diffuse),1.0) + vec4(vec3(specular), 1.0)+uAmbientLightColor;
gl_Position = uMvpMatrix*vec4(position,1.0); //将模型视图投影矩阵与顶点坐标相乘赋值给顶点着色器内置变量gl_Position
}
`

## 3.2 向着色器传值

//获取uniform变量模型视图投影矩阵、模型坐标变换矩阵的逆矩阵、平行光颜色、平行光方向、环境光颜色、视角方向
var uniformLocations = {
uMvpMatrix: gl.getUniformLocation(prg, 'uMvpMatrix'),
uInvMatrix: gl.getUniformLocation(prg, 'uInvMatrix'),
uDirectLightColor: gl.getUniformLocation(prg, 'uDirectLightColor'),
uLightDirection: gl.getUniformLocation(prg, 'uLightDirection'),
uAmbientLightColor: gl.getUniformLocation(prg, 'uAmbientLightColor'),
uEyeDirection: gl.getUniformLocation(prg, 'uEyeDirection'),

}
//给顶点着色器uniform变量uLightDirection-平行光方向传值[-0.5, 0.5, 0.5]
gl.uniform3fv(uniformLocations.uLightDirection, [-0.5, 0.5, 0.5]);

//给顶点着色器uniform变量uDirectLightColor- 平行光颜色传值(1.0,1.0,1.0)
gl.uniform3f(uniformLocations.uDirectLightColor, 1.0, 1.0, 1.0);

//给顶点着色器uniform变量uAmbientLightColor- 环境光颜色传值(0.2, 0.1, 0.2, 1.0)
gl.uniform4f(uniformLocations.uAmbientLightColor, 0.2, 0.1, 0.2, 1.0);

//给顶点着色器uniform变量uEyeDirection-视点方向传值[0.0, 0.0, 20.0]
gl.uniform3fv(uniformLocations.uEyeDirection, [0.0, 0.0, 20.0]);

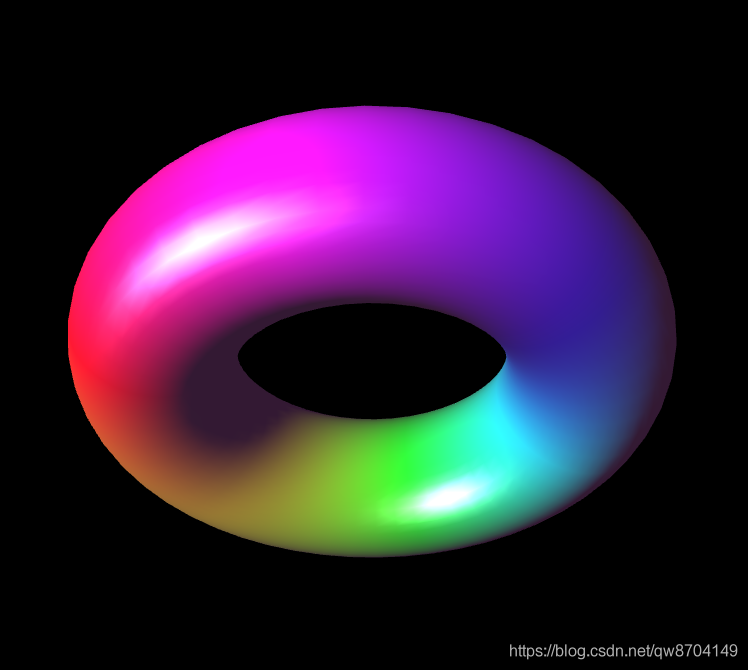

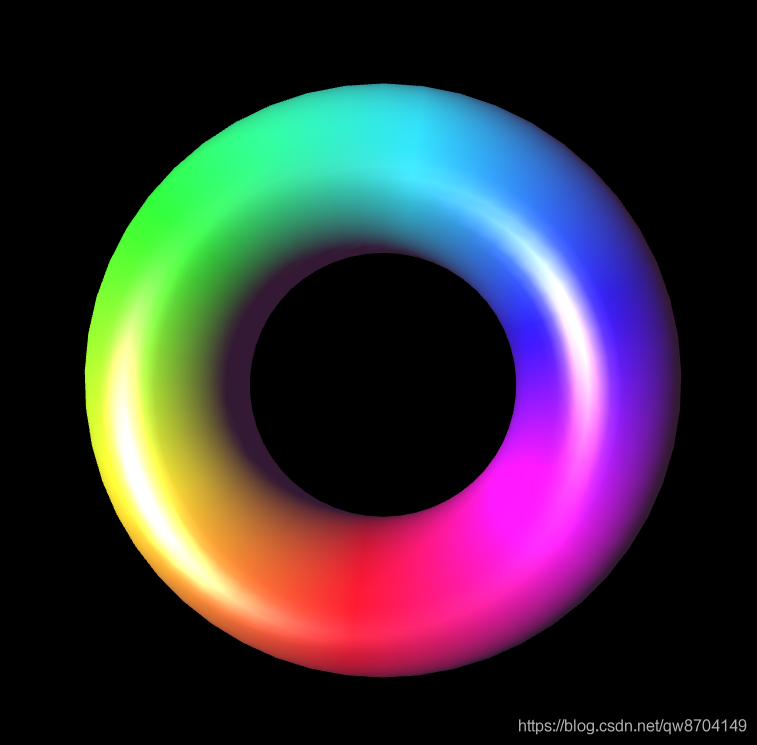

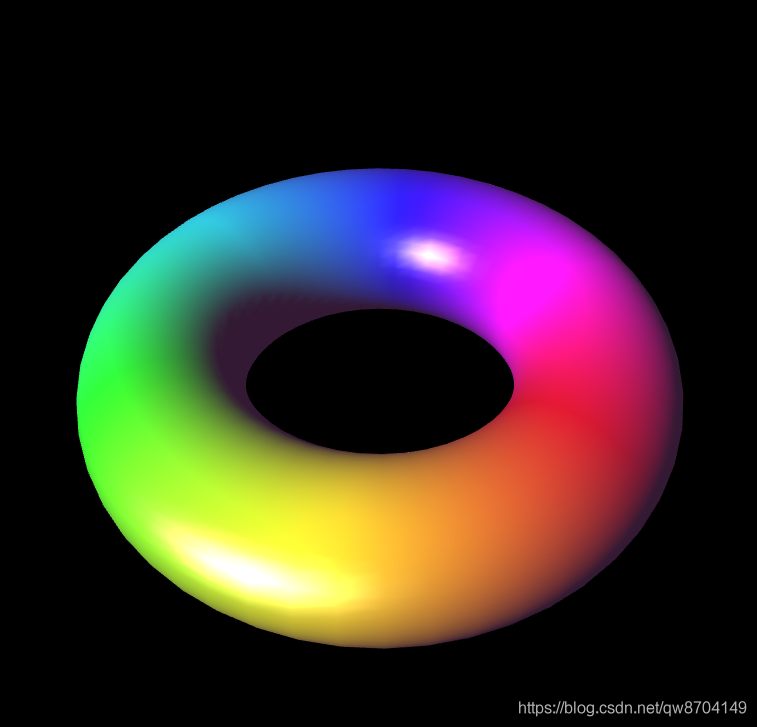

# 4. demo代码

<!DOCTYPE html>
<html lang="en">

<meta charset="UTF-8">
<title></title>

<body>
<!--通过canvas标签创建一个800px*800px大小的画布-->
<canvas id="webgl" width="800" height="800"></canvas>
<script type="text/javascript" src="./lib/cuon-matrix.js"></script>
<script>
//顶点着色器
attribute vec3 position; //顶点位置信息
attribute vec4 color; //颜色
attribute vec3 normal; //法线
uniform mat4 uMvpMatrix; //模型视图投影矩阵
uniform mat4 uInvMatrix;//模型坐标变换矩阵的逆矩阵
uniform vec3 uLightDirection;//平行光方向
uniform vec3 uDirectLightColor;//平行光颜色
uniform vec4 uAmbientLightColor;//环境光颜色
uniform vec3 uEyeDirection;//视点方向
varying vec4 vColor; //向片元着色器传值颜色信息
void main(){
vec3 invLight = normalize(uInvMatrix*vec4(uLightDirection,0.0)).xyz;
vec3 invEye = normalize(uInvMatrix*vec4(uEyeDirection,0.0)).xyz;
vec3 halfLE = normalize(invLight + invEye);//半程向量
float diffuse = clamp(dot(normal,invLight),0.0,1.0);//将结果限定在0.0~1.0内
float specular = pow(clamp(dot(normal, halfLE), 0.0, 1.0), 50.0);//计算高光
//颜色 = 顶点颜色 * 漫反射光 + 反射光 + 环境光
vColor = color*vec4(vec3(uDirectLightColor),1.0)*vec4(vec3(diffuse),1.0) + vec4(vec3(specular), 1.0)+uAmbientLightColor;
gl_Position = uMvpMatrix*vec4(position,1.0); //将模型视图投影矩阵与顶点坐标相乘赋值给顶点着色器内置变量gl_Position
}
`

//片元着色器
#ifdef GL_ES
precision mediump float; // 设置float类型为中精度
#endif
varying vec4 vColor; //接收顶点着色器传送的颜色信息
void main(){
gl_FragColor = vColor; //将接收的颜色信息赋值给内置变量gl_FragColor
}
`

//通过getElementById()方法获取canvas画布
var canvas = document.getElementById('webgl');

//通过方法getContext()获取WebGL上下文
var gl = canvas.getContext('webgl') || canvas.getContext('experimental-webgl');

//创建程序对象

//获取顶点位置、法线、颜色的存储地址
var attLocations = {
position: gl.getAttribLocation(prg, 'position'),
normal: gl.getAttribLocation(prg, 'normal'),
color: gl.getAttribLocation(prg, 'color'),
}

//每个顶点属性的大小(分量数)
var attStrides = {
position: 3,
normal: 3,
color: 4,
}

// 生成绘制甜圈圈的信息
var torusData = torus(50, 50, 3.0, 8.0);

var position = torusData[0];
var normal = torusData[1];
var color = torusData[2];
var index = torusData[3];

// 创建存放顶点、法线、颜色的VBO
var vbos = {
position: create_vbo(position),
normal: create_vbo(normal),
color: create_vbo(color),
}

// 设置VBO
set_attribute(vbos, attLocations, attStrides);

// 创建IBO
var ibo = create_ibo(index);

// IBO绑定
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, ibo);

//获取uniform变量模型视图投影矩阵、模型坐标变换矩阵的逆矩阵、平行光颜色、平行光方向、环境光颜色、视角方向
var uniformLocations = {
uMvpMatrix: gl.getUniformLocation(prg, 'uMvpMatrix'),
uInvMatrix: gl.getUniformLocation(prg, 'uInvMatrix'),
uDirectLightColor: gl.getUniformLocation(prg, 'uDirectLightColor'),
uLightDirection: gl.getUniformLocation(prg, 'uLightDirection'),
uAmbientLightColor: gl.getUniformLocation(prg, 'uAmbientLightColor'),
uEyeDirection: gl.getUniformLocation(prg, 'uEyeDirection'),

}
//给顶点着色器uniform变量uLightDirection-平行光方向传值[-0.5, 0.5, 0.5]
gl.uniform3fv(uniformLocations.uLightDirection, [-0.5, 0.5, 0.5]);

//给顶点着色器uniform变量uDirectLightColor- 平行光颜色传值(1.0,1.0,1.0)
gl.uniform3f(uniformLocations.uDirectLightColor, 1.0, 1.0, 1.0);

//给顶点着色器uniform变量uAmbientLightColor- 环境光颜色传值(0.2, 0.1, 0.2, 1.0)
gl.uniform4f(uniformLocations.uAmbientLightColor, 0.2, 0.1, 0.2, 1.0);

//给顶点着色器uniform变量uEyeDirection-视点方向传值[0.0, 0.0, 20.0]
gl.uniform3fv(uniformLocations.uEyeDirection, [0.0, 0.0, 20.0]);

var currentAngle = [0.0, 0.0]; //当前旋转的角度[x-axis, y-axis]
var g_MvpMatrix = new Matrix4(); //模型视图投影矩阵
var viewProjMatrix = new Matrix4(); //创建视图投影矩阵
var modelMatrix = new Matrix4(); //创建模型矩阵
var invMatrix = new Matrix4(); //创建模型矩阵

viewProjMatrix.setPerspective(45.0, canvas.width / canvas.height, 1.0, 100.0);
viewProjMatrix.lookAt(0.0, 20.0, 30.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

gl.enable(gl.DEPTH_TEST); //开启隐藏面消除
gl.depthFunc(gl.LEQUAL); //如果传入值小于或等于深度缓冲区值，则通过
gl.enable(gl.CULL_FACE); //激活多边形正反面剔除
var rotateSpeed = 0.1; // 自动旋转速度
(function tick() {

// gl初始化
gl.clearColor(0.0, 0.0, 0.0, 1.0); //指定调用 clear() 方法时使用的颜色值
gl.clearDepth(1.0); //设置深度清除值
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT); //清空颜色和深度缓冲区

//计算模型视图投影矩阵
g_MvpMatrix.set(viewProjMatrix); //设置视图投影矩阵

modelMatrix.setRotate(currentAngle[0], 1.0, 0.0, 0.0); //沿X轴旋转设置矩阵
modelMatrix.rotate(currentAngle[1], 0.0, 1.0, 0.0); //沿Y轴旋转设置矩阵

rotateSpeed += 0.3;
modelMatrix.rotate(rotateSpeed, 0.0, 1.0, 1.0); //更新旋转矩阵

g_MvpMatrix.multiply(modelMatrix) //相乘模型变换矩阵

//计算模型坐标变换矩阵的逆矩阵
invMatrix.setInverseOf(modelMatrix)

//向着色器传值模型视图投影矩阵uMvpMatrix、模型坐标变换矩阵的逆矩阵uInvMatrix
gl.uniformMatrix4fv(uniformLocations.uMvpMatrix, false, g_MvpMatrix.elements);
gl.uniformMatrix4fv(uniformLocations.uInvMatrix, false, invMatrix.elements);

//绘图
gl.drawElements(gl.TRIANGLES, index.length, gl.UNSIGNED_SHORT, 0);

gl.flush();

requestAnimationFrame(tick)

})();

initEventHandlers(canvas, currentAngle) //注册鼠标事件

//创建程序对象

//创建顶点着色器对象
//创建片元着色器对象

return null
}

//创建程序对象program
var program = gl.createProgram();
if (!gl.createProgram()) {
return null
}

//分配顶点着色器和片元着色器到program
//链接program

//检查程序对象是否连接成功
var error = gl.getProgramInfoLog(program);
console.log('程序对象连接失败: ' + error);
gl.deleteProgram(program);
return null
}

//使用program
gl.useProgram(program);

gl.program = program;
//返回程序program对象
return program
}

// 创建顶点着色器对象
console.log('创建着色器失败');
return null
}

// 引入着色器源代码

// 编译着色器

// 检查顶是否编译成功
if (!compiled) {
console.log('编译着色器失败: ' + error);
return null
}

}

function initEventHandlers(canvas, currentAngle) {
var dragging = false; //默认鼠标拖动不旋转物体
var lastX = -1,
lastY = -1; //鼠标最后的位置

canvas.onmousedown = function (ev) { //注册鼠标按下事件
var x = ev.clientX,
y = ev.clientY;

//鼠标在物体上开始拖动
var rect = ev.target.getBoundingClientRect();
if (rect.left <= x && x < rect.right && rect.top <= y && y < rect.bottom) {
lastX = x;
lastY = y;
dragging = true;
}
}

//鼠标松开拖动结束
canvas.onmouseup = function (ev) {
dragging = false;
}

canvas.onmousemove = function (ev) { //注册鼠标移动事件
var x = ev.clientX,
y = ev.clientY;
if (dragging) {
var factor = 100 / canvas.height; //旋转因子
var dx = factor * (x - lastX);
var dy = factor * (y - lastY);
//沿Y轴的旋转角度控制在-90到90度之间
currentAngle[0] = Math.max(Math.min(currentAngle[0] + dy, 90.0), -90.0);
currentAngle[1] = currentAngle[1] + dx;
}
lastX = x;
lastY = y;
}
}

// 创建VBO
function create_vbo(data) {
//创建缓冲区对象
var vbo = gl.createBuffer();

//绑定缓冲区到ARRAY_BUFFER
gl.bindBuffer(gl.ARRAY_BUFFER, vbo);

//将数据写入缓冲区对象
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(data), gl.STATIC_DRAW);

//解绑缓冲区
gl.bindBuffer(gl.ARRAY_BUFFER, null);

return vbo
}

// 向VBO写入数据
function set_attribute(vbo, attLocation, attStride) {

for (var key in vbo) {
//绑定缓冲区到ARRAY_BUFFER
gl.bindBuffer(gl.ARRAY_BUFFER, vbo[key]);

//分配缓存区到指定地址
gl.vertexAttribPointer(attLocation[key], attStride[key], gl.FLOAT, false, 0, 0);

//开启缓冲区
gl.enableVertexAttribArray(attLocation[key]);
}
}

// 创建IBO
function create_ibo(data) {
//创建缓冲区对象
var ibo = gl.createBuffer();

//绑定缓冲区到ELEMENT_ARRAY_BUFFER
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, ibo);

//将数据写入缓冲区对象
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, new Int16Array(data), gl.STATIC_DRAW);

//解绑缓冲区
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, null);

return ibo;
}

//生成甜圈圈
//第一个参数表示管道截面圆分段数，第二个参数表示管道圆的分段数，
//第三个参数管道截面圆的半径。第四个参数表示从管道中心到管道截面圆中心的距离
var position = new Array(),
normal = new Array(),
color = new Array(),
index = new Array();
for (var i = 0; i <= row; i++) {
var r = Math.PI * 2 / row * i; //管道圆上每个分段的弧度
var rr = Math.cos(r);
var ry = Math.sin(r);
for (var ii = 0; ii <= column; ii++) {
var tr = Math.PI * 2 / column * ii;
//每个顶点位置的x、y、z分量
var ty = ry * irad;

var rx = rr * Math.cos(tr);
var rz = rr * Math.sin(tr);
position.push(tx, ty, tz);
normal.push(rx, ry, rz);
var tc = hsva(360 / column * ii, 1, 1, 1);
color.push(tc[0], tc[1], tc[2], tc[3]);
}
}
for (i = 0; i < row; i++) {
for (ii = 0; ii < column; ii++) {
r = (column + 1) * i + ii;
index.push(r, r + column + 1, r + 1);
index.push(r + column + 1, r + column + 2, r + 1);
}
}
return [position, normal, color, index];
}

//将HSV颜色转换为RGB颜色
function hsva(h, s, v, a) {
if (s > 1 || v > 1 || a > 1) {
return;
}
var th = h % 360;
var i = Math.floor(th / 60);
var f = th / 60 - i;
var m = v * (1 - s);
var n = v * (1 - s * f);
var k = v * (1 - s * (1 - f));
var color = new Array();
if (!s > 0 && !s < 0) {
color.push(v, v, v, a);
} else {
var r = new Array(v, n, m, m, k, v);
var g = new Array(k, v, v, n, m, m);
var b = new Array(m, m, k, v, v, n);
color.push(r[i], g[i], b[i], a);
}
return color;
}

}
</script>
</body>

</html>
